Flexible Ceramic Mat Heater Element Industrial Heating Pad
Product description

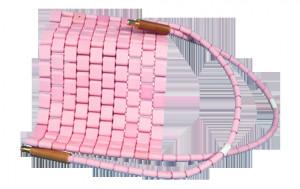

Flexible ceramic pad (FCP) heater is a crawler or rope heater made of high-quality nickel-chromium alloy steel wire rope and high-purity alumina ceramic parts.
product type.
According to the shape of the workpiece and the size of the production, it can be spliced, bent, tightly wrapped, etc. to heat the workpiece. It has a wide range of use, fast heating speed, high heat utilization rate, and easy operation. The highest surface temperature can reach 1050 ℃, suitable for various metal components, such as
Welding preheating for large towers, pressure vessels, bridges, high-pressure pipelines, and welding stress relief. It can also be used for auxiliary heating of pipes and containers, without restrictions indoors and outdoors. It is currently the most advanced and practical local heating equipment in China.
Specification
| HMT Code |
Type |
Width |
Length |
Rating |
Current |
Voltage |
| |
|
(mm) |
(mm) |
(kW) |
(amp) |
(volt) |
| HMT-803 |
CP3 |
75 |
991 |
3.6 |
45 |
80 |
| HMT-804 |
CP4 |
102 |
737 |
3.6 |
45 |
80 |
| HMT-806 |
CP6 |
152 |
501 |
3.6 |
45 |
80 |
| HMT-808 |
CP8 |
203 |
368 |
3.6 |
45 |
80 |
| HMT-8010 |
CP10 |
254 |
290 |
3.6 |
45 |
80 |
| HMT-8012 |
CP12 |
305 |
248 |
3.6 |
45 |
80 |
| HMT-8015 |
CP15 |
380 |
203 |
3.6 |
45 |
80 |
| HMT-8018 |
CP18 |
457 |
165 |
3.6 |
45 |
80 |
| HMT-8021 |
CP21 |
535 |
145 |
3.6 |
45 |
80 |
| HMT-8024 |
CP24 |
610 |
125 |
3.6 |
45 |
80 |
| HMT-8029 |
CP29 |
740 |
100 |
3.6 |
45 |
80 |
| HMT-8033 |
CP33 |
840 |
85 |
3.6 |
45 |
80 |
| HMT-8036 |
CP36 |
915 |
80 |
3.6 |
45 |
80 |
Advantages
- 95% aluminum oxide ceramic with 3/8 inch thickness
- The ceramic beads are sintered, special dielectric to bear high temperature 1100 degree celsius
- Nickel chrome resistance wire, multi-stranded weavng. It goes through the space which is formed by interlocking ceramic beads.
- Flexible for curve surface heating, such as pipes and containers.
- Cold tail.
- Nominal 9 inches length of nickel chrome wire is welded with another nickel chrome wire. Then it forms cold tail to prevent dielectrical connector from being heated.
- Two kinds as usual.
- 80v 3.6kw thermal power with 120 square inches, 45 amps
- 60v 2.7kw thermal power with 90 square inches, 45 amps
Application
As ceramic parts of flexible pad and channel heaters at operations of pre and postweld heat treatment;
Welding process, stress-relieving, pre-heating & post heating, ship-building, other resistance-heating environment.
